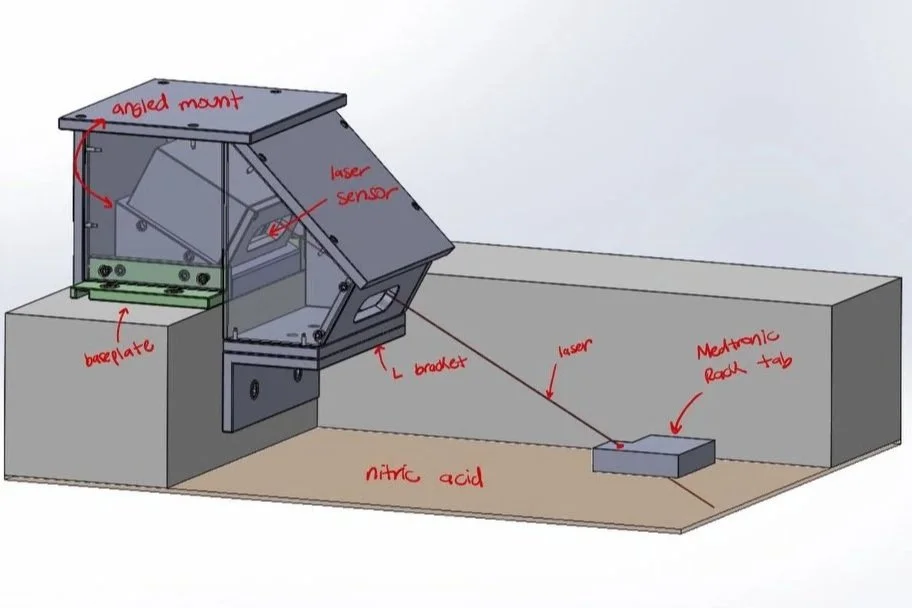

Angled Laser Sensor Mount
MICRO
Design a mount to hold a laser sensor at a fixed angle to detect a tab in an electropolisher
Mount must fully protect the laser sensor from nitric acid splashes
Objective

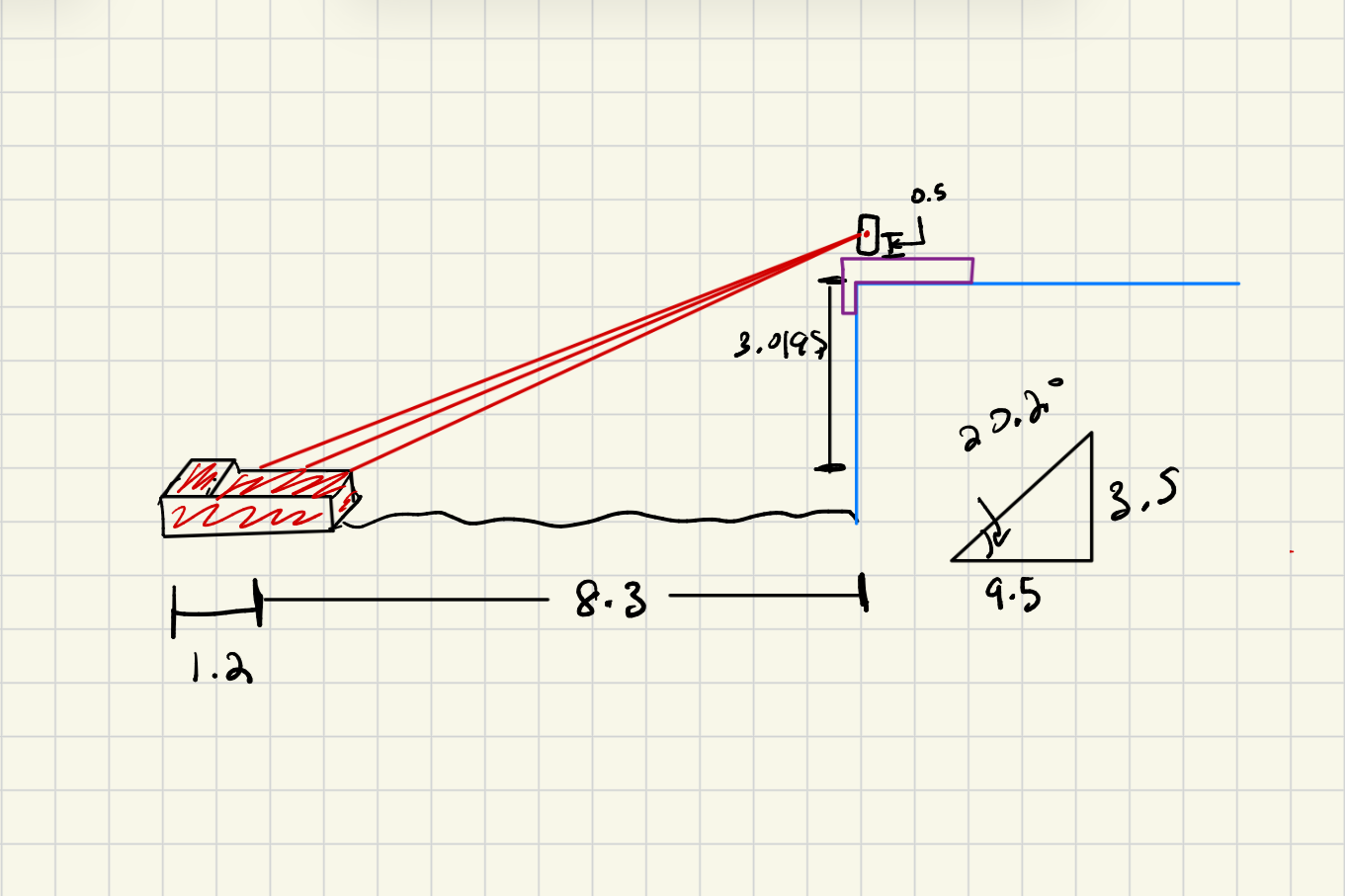

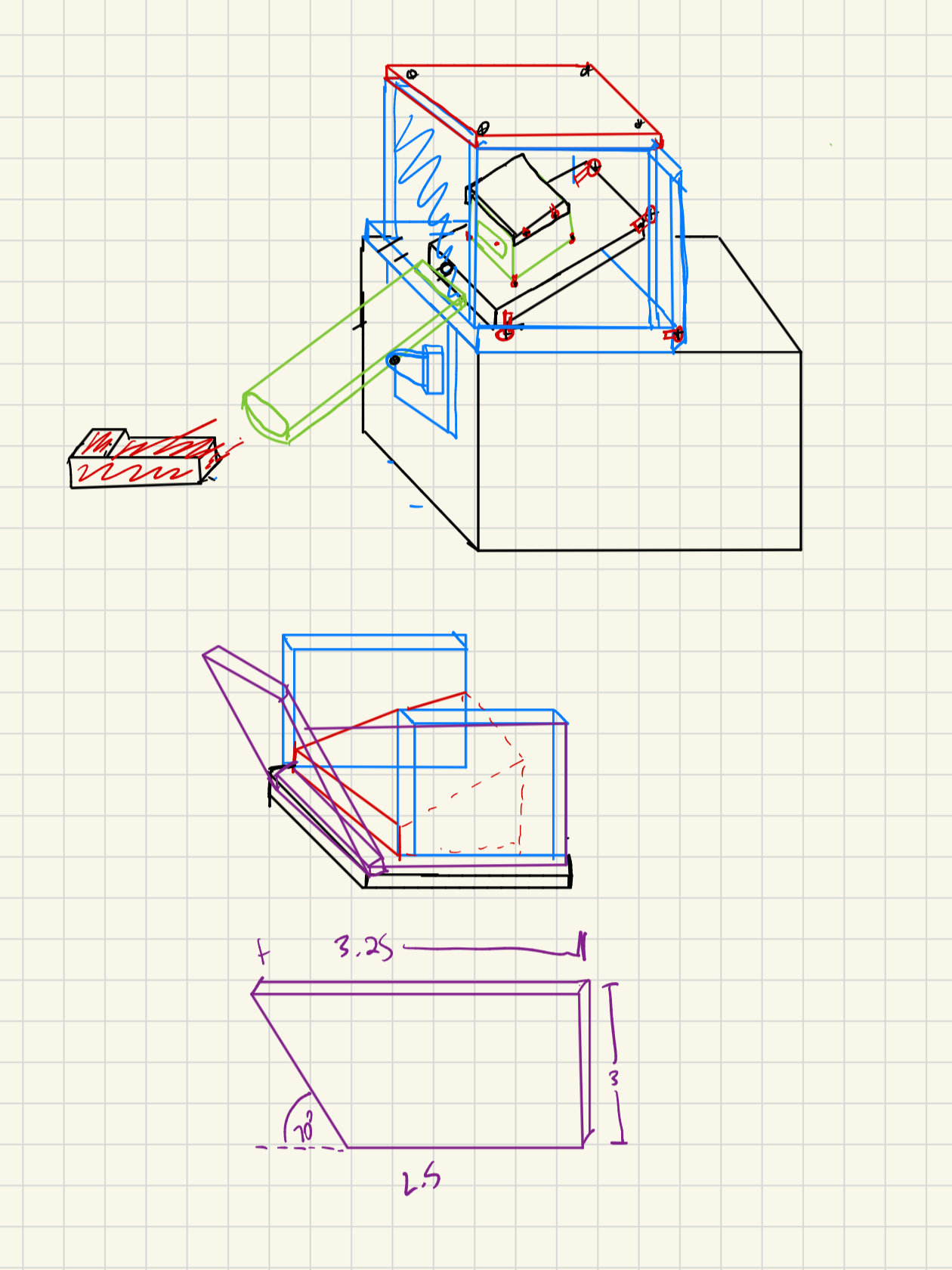

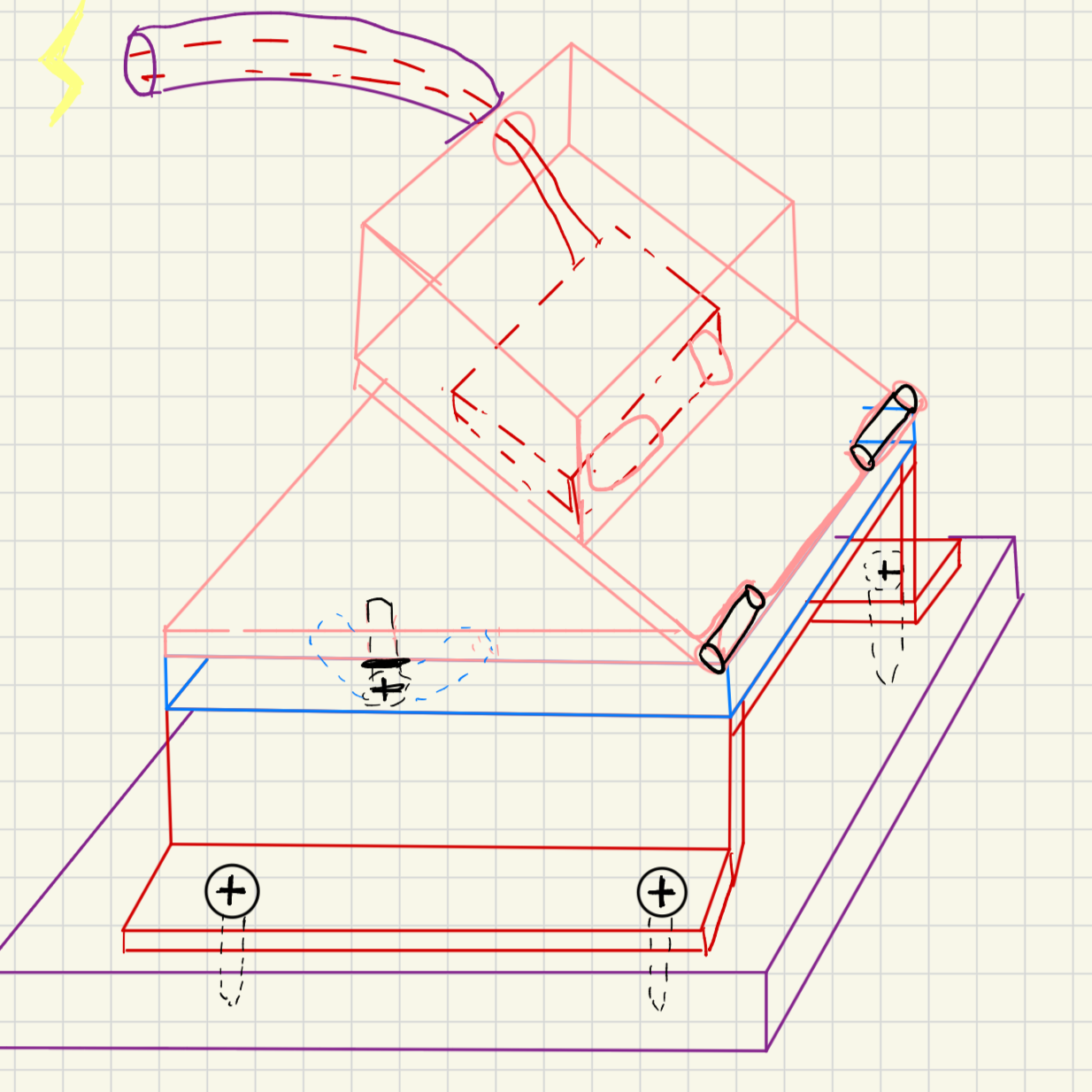

Calculations & Concept Sketches

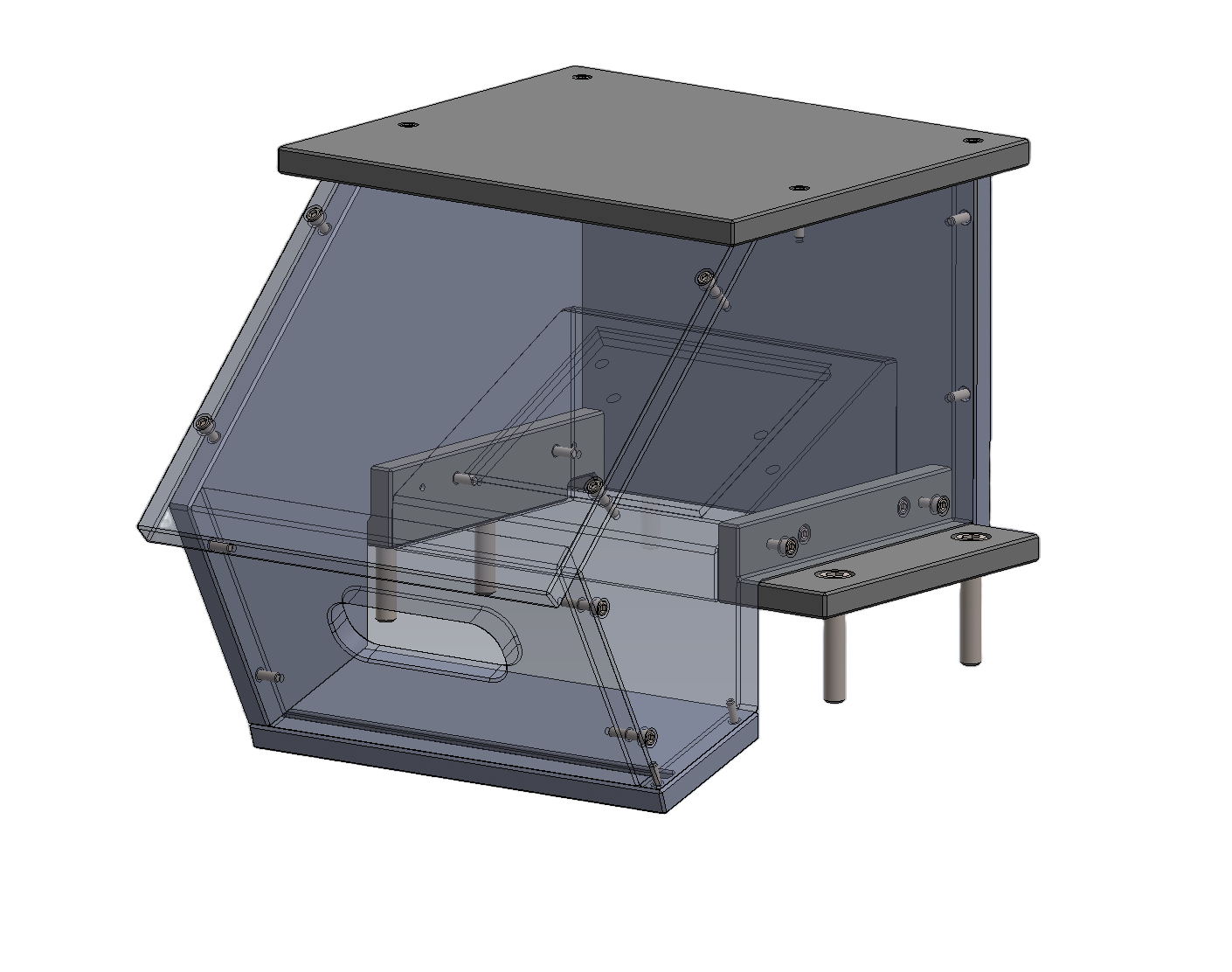

Designed in Solidworks

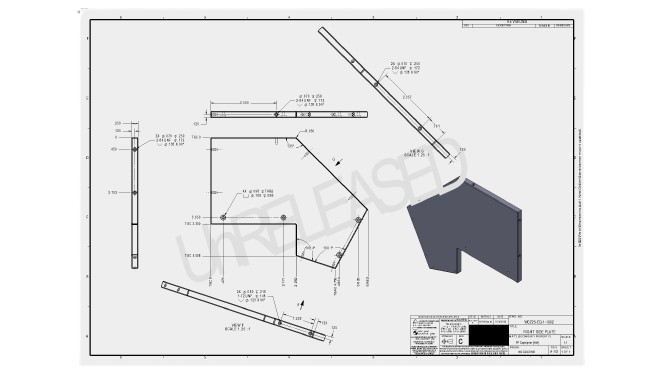

Applied GD&T on all drawings
Contacted multiple vendors for quoting
How?

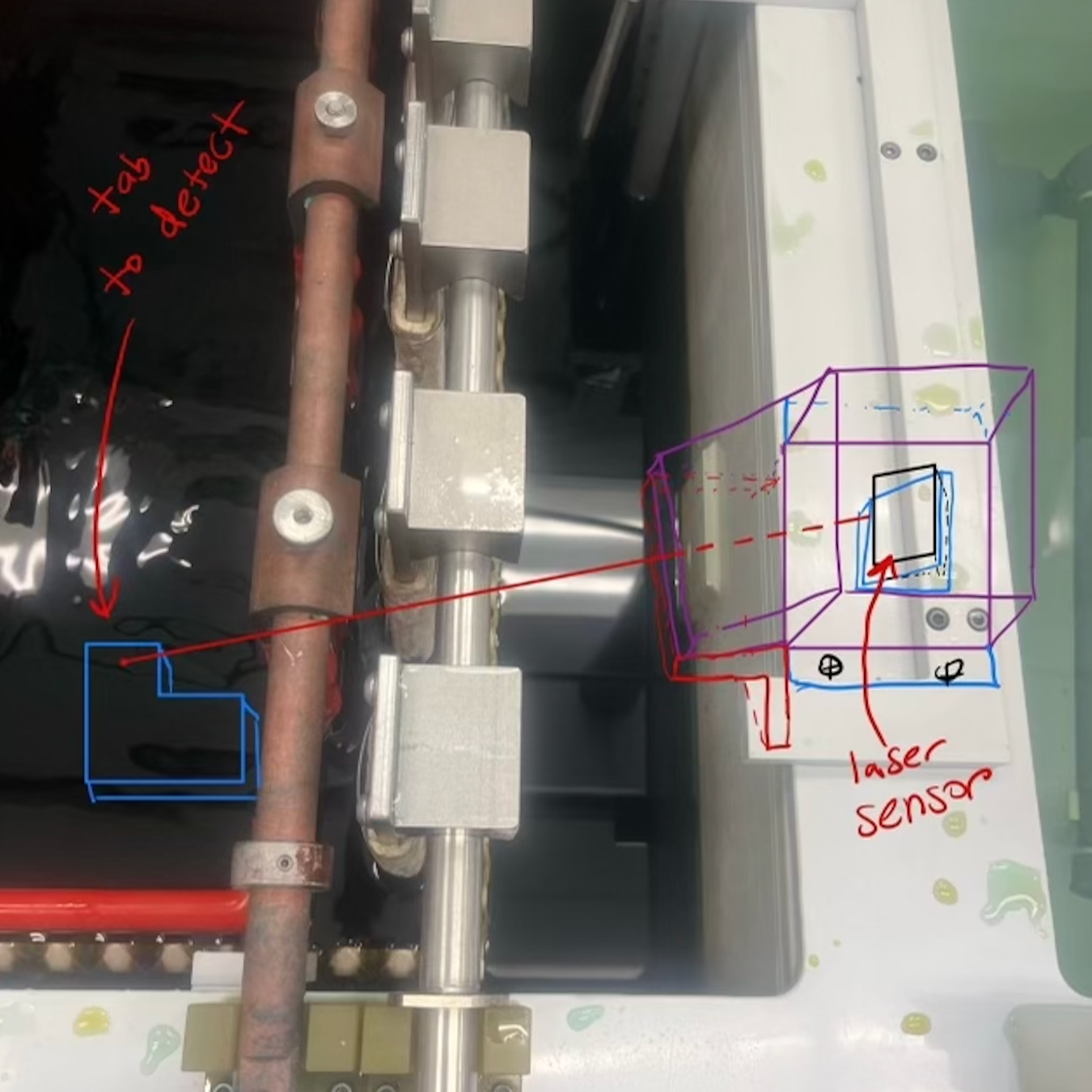

Electropolisher with overlaid sketch

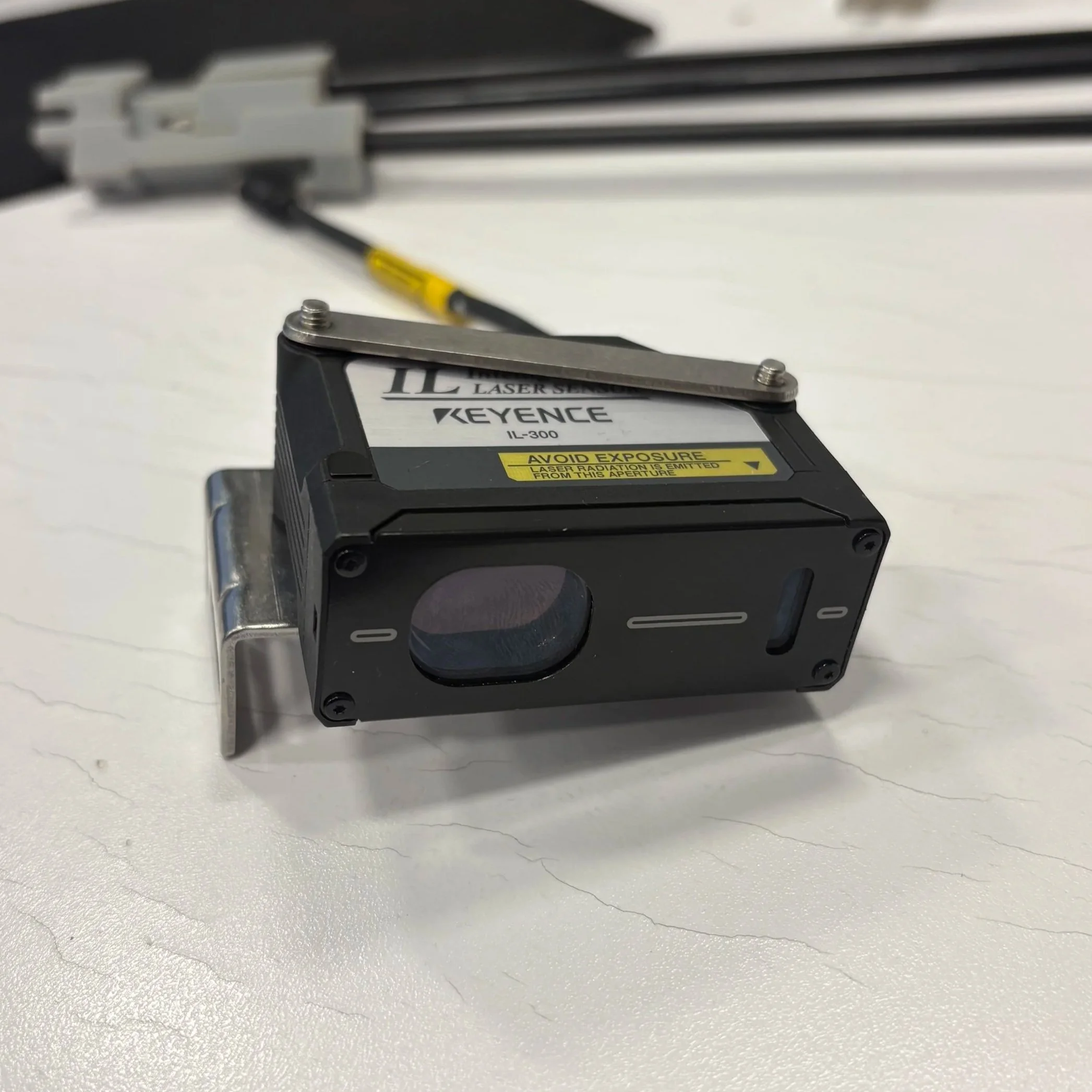

Laser sensor
Brought quote down ~$700 from original design by implementing DFM principles
